SPECIFICATIONS

Hign-concerned Chemical: None

Maximum Torque(Nm): ≥80Nm

Wheelbase: 1800-2200mm

Brake System: Front disc+Rear dsic

Minimum Grand Clearance: 200-250mm

Curb Weight: ≥500kg

Maximum Speed: 50-75Km/h

Driving Type: 2WD

Payload Capacity: ≥500kg

Differential Lock: Unequipped

Charge Time(h): 5-7h

Grade Ability: ≥25°

Driving Mileage: 70-90km

Type: 7.5kw

Certificate: EEC

Transmission Type: Automatic

Place of Origin: Henan, China

Brand Name: KINGWOO&LVCCI

Model Number: RUE725

Power: > 1000W, 5KW=7.5KW

Voltage: > 60V

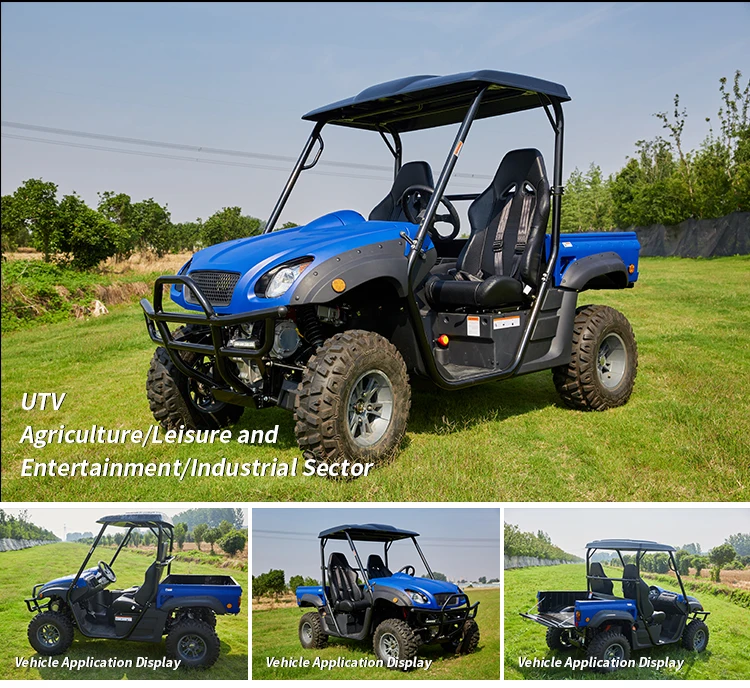

Product name: Electric UTV

Seat: 2

Model: RUE725X(4x2)

Color: Customizable

Max forward speed: 60(km/h)

Parking Brakes: Hand-Actuated

Front/Rear Brakes: 4-Wheel Hydraulic Disc

Motor Type: 7.5KW,72V

Specification

Item	Eelectric UTV
Model Number	RUE725
Overall dimensions	2950 * 1430 * 1780mm
Front and rear wheelbase	1140 * 1130mm
Wheelbase	1900 mm
Drive type	rear motor, 2WD
Crew	2 people
Vehicle weight	788kg
Minimum turning radius	≤ 3.5m
Minimum ground clearance	≥ 220mm
Maximum speed	≥ 60km/h, (0-50km/h acceleration time ≤ 9s)
Maximum climbing slope	≥ 30%
Maximum range	≥ 90km(40km/h constant speed method, flat road surface)
Rated voltage	72V
Motor type	AC asynchronous motor
Motor layout	rear
Rated power	7.5KW
Rated speed	3000r/min
Maximum speed	6000r/min
Steering type	EPS
Brake system type	Hydraulic front/rear disc brakes
Parking brake type	handbrake
Front and rear suspension type	dual independent suspension
Road front and rear wheels (EEC)	F: 175/65 R14 82H R: 175/65 R14 82H
Off road front and rear wheels	F: 25-8-12 R: 25-10-12
Cargo bed size	950 x 1400 x 340mm
Battery type (lead-acid battery)	8V, 150Ahx9
Battery type (lithium-ion battery optional)	73.6V, 150Ah, 11.04kWh
Lithium battery management system	BMS
Lithium battery waterproof level	IP67
Lithium battery alarm protection	current and temperature monitoring, overcurrent, overvoltage, and over temperature alarm short circuit protection
Lithium battery life	cycle life ≥ 3000
Capacity retention rate	≥ 70%

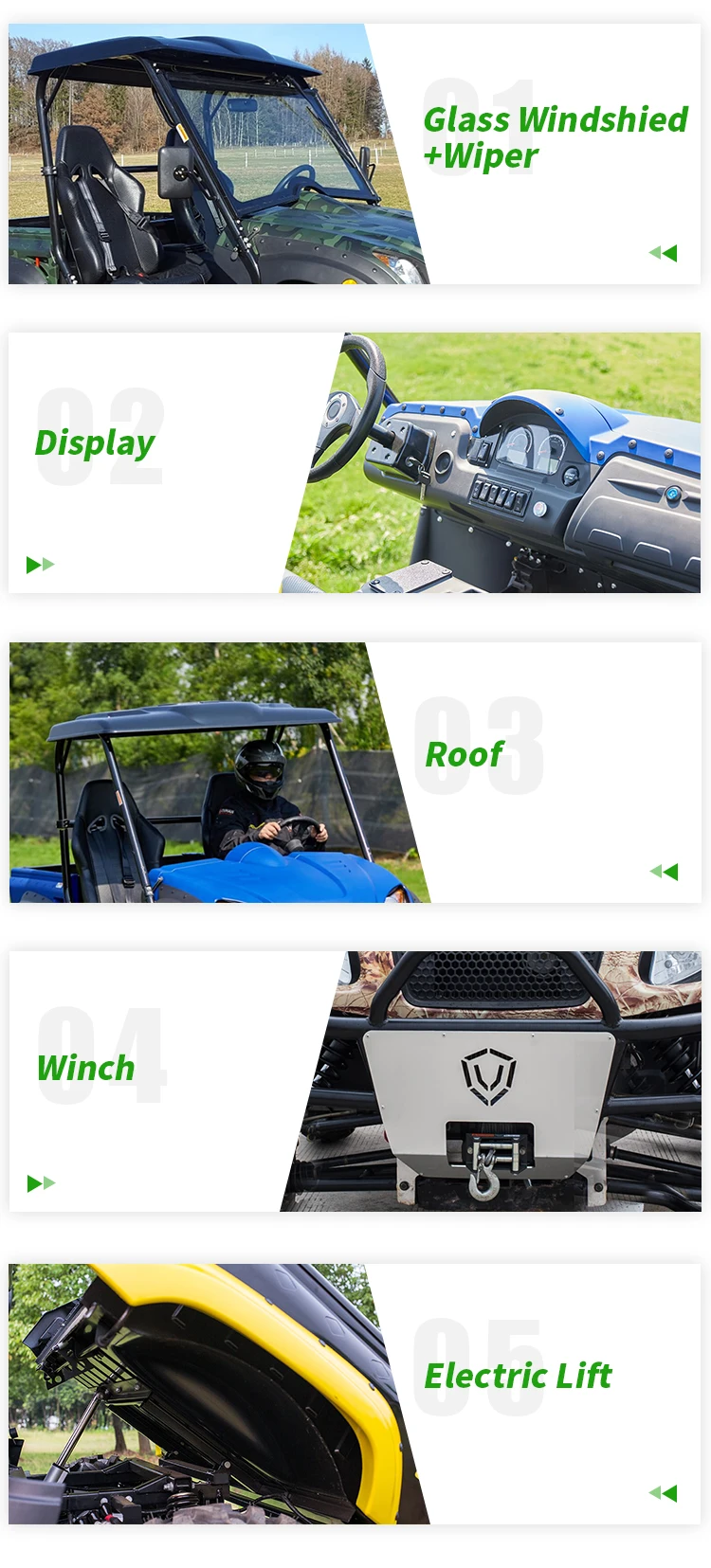

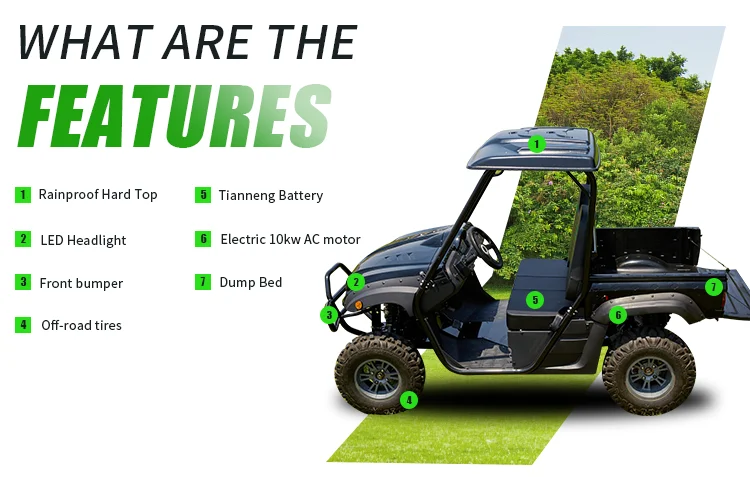

Product Description

Certifications

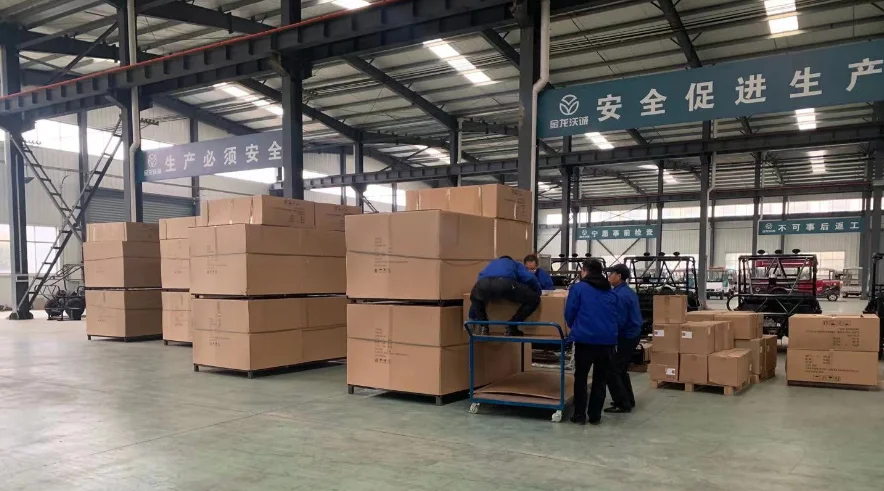

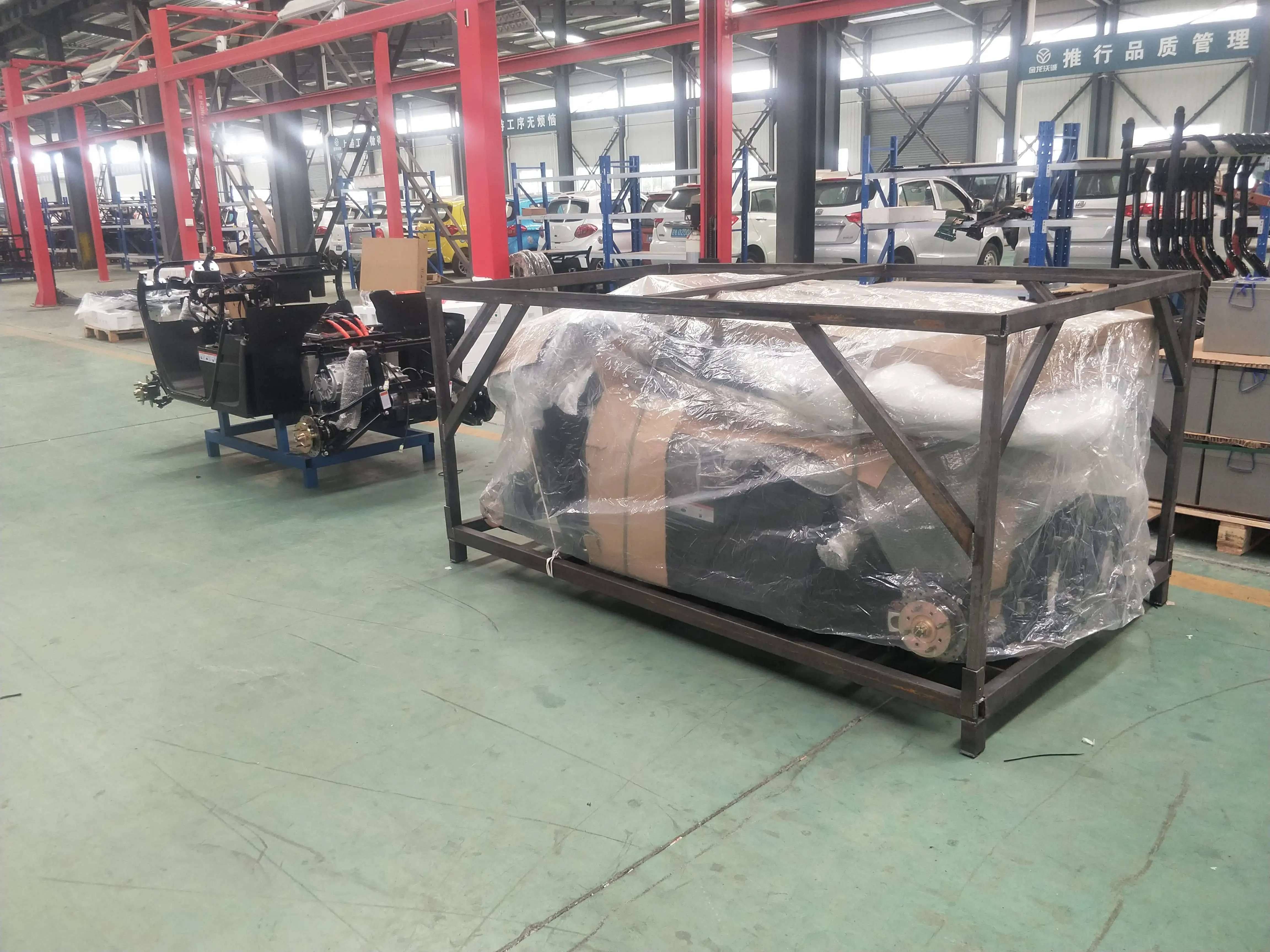

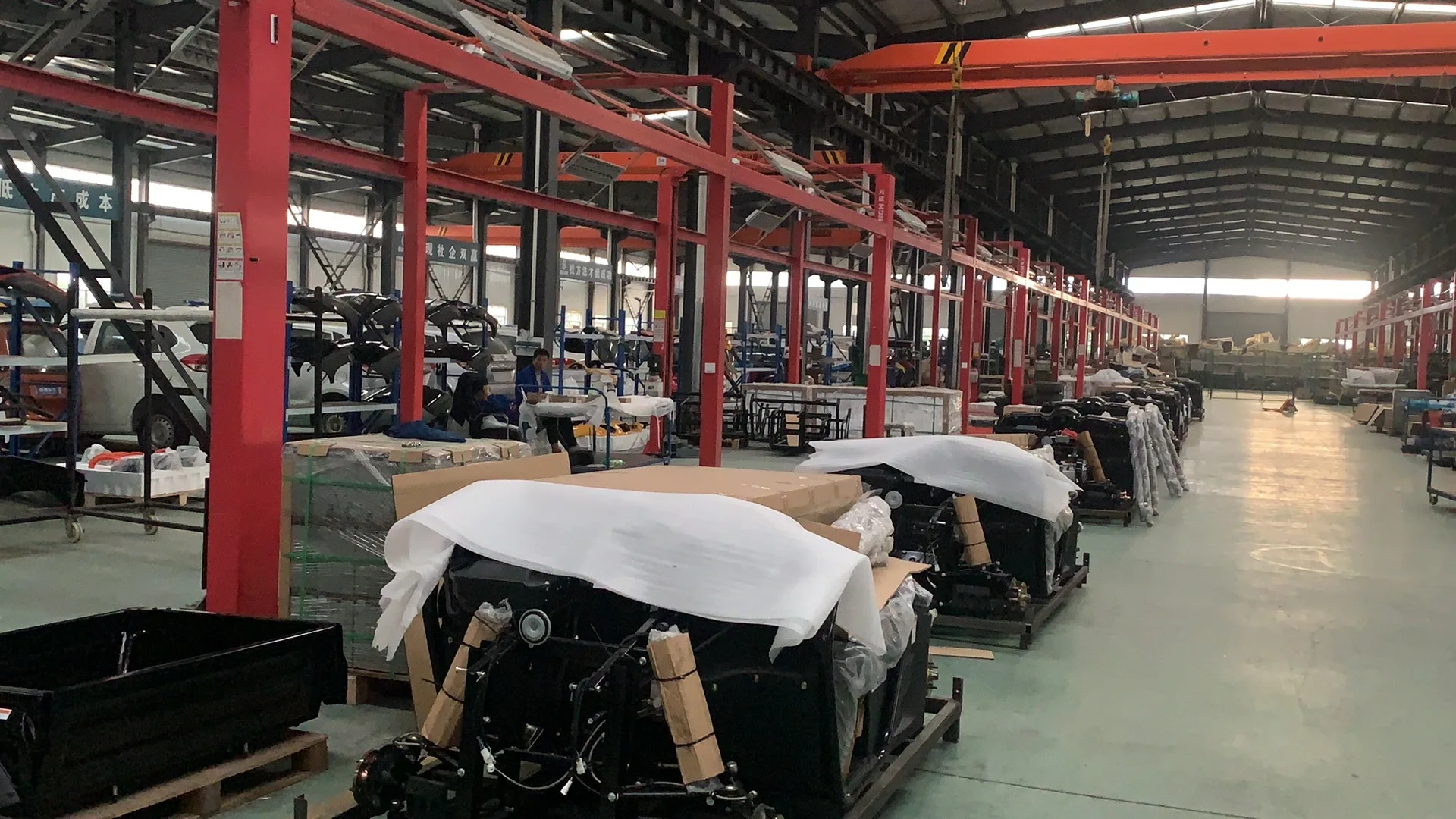

Packing & Delivery

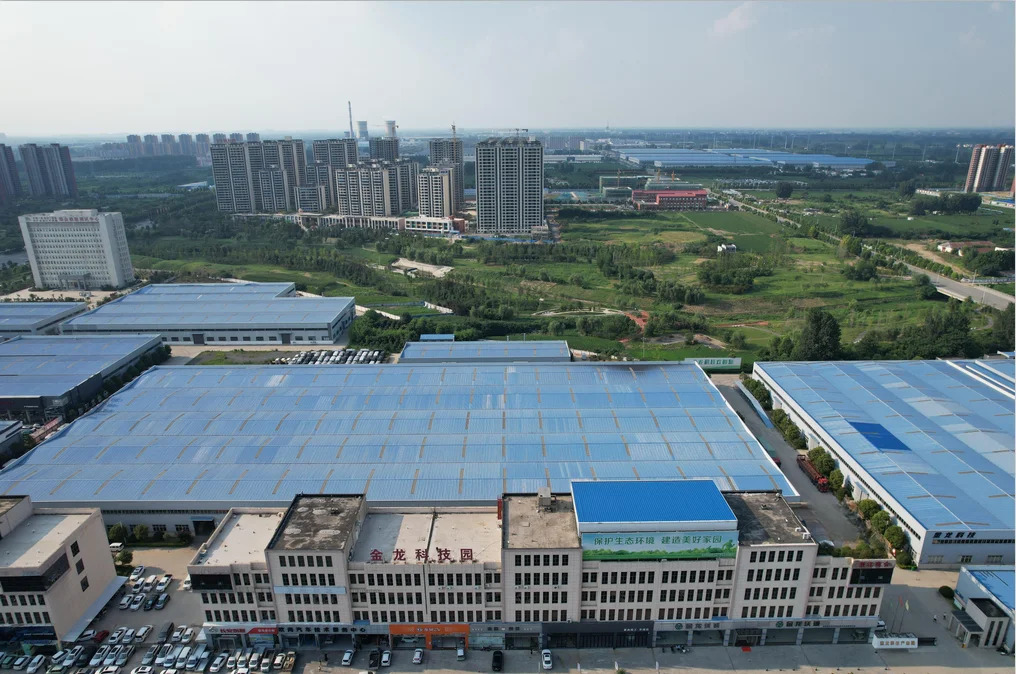

Company Profile

Henan Kingwoo Electric Vehicle Manufacturing Co.,Ltd.

Lvcci and Kingwoo are innovative manufactures,we focused on producing high-quality electric UTV (Electric Utility Vehicle) series, serving various industries including agriculture, ranching, forestry, industrial transportation, construction, and hunting. Our industrial park is located in Henan Province, China. Since its establishment in 2014, we have accumulated over 10 years of production and work experience, and have now developed into a modern enterprise with over 100 technical employees and an area of over 200000 square meters. Our products are exported to more than 50 countries and regions worldwide, and we have agents in the Netherlands, Spain, Poland, Germany, Australia, New Zealand, the United Kingdom, Russia, and the United States, which are highly trusted and praised by customers. We have been committed to the research and innovation of electric UTVs, firmly believing that electrification is an inevitable trend for future development. Compared to traditional gasoline UTVs, electric UTVs are not only noise free and environmentally friendly, but also highly cost-effective. In recent years, governments around the world have launched various preferential policies to encourage and support the development of electric vehicles, providing a broader market prospect for electric UTVs. Our all terrain, off-road electric vehicles have become an ideal alternative to traditional diesel vehicles due to their affordability and efficient performance. We continuously pursue technological breakthroughs and product upgrades, committed to providing customers with more environmentally friendly, economical, and efficient transportation solutions. At Lvcci and Kingwoo, we not only focus on product innovation and quality improvement, but also pay more attention to customer needs and market changes. In the future, we will continue to uphold the concept of "technology leading the future, green creating value", promote the development of the electric UTV industry, and provide better products and services to global customers. Looking forward to working together with you to create a better future.

FAQ

Q:May I Know How Soon I Can Get The UTV After I Transfer The Deposit?
A:Usually, if the quantity is less than 14 units, we can deliver the goods within 30 days with quality and quantity guaranteed.

Q:There Are So Many Suppliers From China,How To Identify Product Quality?
A:Our Products Have A 12 Months Warranty After Sale; If Any One Breaks When It Is Still Under Warranty,Please Just Contact Us.

Q:Are The UTV Suited For The Public Roads?
A:Yes, all the vehicle out of the utv series are standardly delivered with road access. We have the european union's eec certification, allowing it to be driven on european roads.

Q:What Is The Maximum Speed Of UTV?
A:The utv has a speed of approximately 55 km/h and the utv 4x4 has a speed of approximately 45 km/h. It is possible to let us lower the speeds, for instance in connection with the safety on events or recreational terrain. It is your choice which maximum speed you want for the utv. The speed limit has two forms, fixed and variable. The fixed limit makes sure that the vehicle can’t go faster than the requested speed. With a variable limit the vehicle can switch between low and high speeds controlled with an admin key. Q:What Kind Of Batteries Do The Vehicles Use?
A:We use agm batteries(maintenance-free) as standard. Against a higher price, we can replace the battery with a lithium battery.These lithium batteries are capable of heavier duty, travel farther per charge, and have a life expectancy three to four times that of agm batteries. In the long run, this is the most viable option. Because the battery pack doesn't need to be replaced that quickly. By using lithium, attractive subsidies can be provided for corporate use.
